Best Sellers

Romford 16.5mm Axle (1/8" diameter)

Romford 16.5mm Axle (1/8

£1.98/$2.48

MRAX/OO 1/8" diameter axle for 16.5mm track.Includes two brass fixing nuts. For spacing washers see WPY33

Owing to the current closure of Markits, following Mark's death, we are currently only supplying

these components commensurate with a purchase of Scale Link wheels. i.e. 6 wheels = 3 axles

When the future of Markits is known, we will review the situation.

Orders received without the appropriate quantity of Scale Link wheels will currently not be supplied.
find out more

6 x Crank pins for driving wheels

6 x Crank pins for driving wheels

£7.20/$9.00

Set of 6 with retainers for 10BA tapped hole or for self-tapping into OUR wheels.

NOTE: Extreme care must be taken if soldering the retainer onto the crank-pin as heat can damage the wheel centre.

Inexperienced modellers should use Markits/Romford De-luxe crankpins with bushes and 14BA nuts.
find out more

Hanazono 12 volt motor bogie 24.5mm wheelbase

Hanazono 12 volt motor bogie 24.5mm wheelbase

£45.00/$56.25

Fitted 10.5mm disk wheels

BODY size:- Length=31.75mm x Width=14.35mm x Height=14.55mm (above rail)

These units must have weight applied to operate successfully.

For shipping you must select "Small boxed kits" or we cannot supply.

International shipping = e-mail for shipping costs
find out more

Romford 16.5mm axle with flat for grub screw (1/8" diameter)

£1.98/$2.48

MRAX/OO 1/8" diameter axle for 16.5mm track. Includes two brass fixing nuts Slotted for improved grub screw location.

For spacing washers see WPY33

Owing to the current closure of Markits, following Mark's death, we are currently only supplying

these components commensurate with a purchase of Scale Link wheels. i.e. 6 wheels = 3 axles

When the future of Markits is known, we will review the situation.

Orders received without the appropriate quantity of Scale Link wheels will currently not be supplied.
find out more

18.45mm/16-spoke driving wheel x 1

18.45mm/16-spoke driving wheel x 1

£4.20/$5.25

Produced by Scale Link/LSL with an ABS centre and nickled tyre.

Designed for use with Romford axles. Released: March 2018

Diameter of drum is 18.45mm. 4 feet 7 1/2 inches in 00 160.5cm in H0

THESE WHEELS ARE SOLD SINGLY
find out more

16mm /12-spoke driving wheel x 1

16mm /12-spoke driving wheel x 1

£4.20/$5.25

Produced by Scale Link/LSL with an ABS centre and nickled tyre.

Designed for use with Romford axles. Released: JULY 2010.

Diameter of drum is 16mm. 4 feet in 00 139.2cm in H0

THESE WHEELS ARE SOLD SINGLY
find out more

Markits DeLuxe Crankpin sets (6)

Markits DeLuxe Crankpin sets (6)

£6.00/$7.50

NEW STOCK - NEW PRICE

Owing to the current closure of Markits, following Mark's death, we are currently only supplying

these components commensurate with a purchase of Scale Link wheels. i.e. 6 wheels = MCRNKPDL6 x 1

Orders received without the appropriate quantity of Scale Link wheels will currently not be supplied.
find out more

40:1 Gearset 3/16" wheel bore/2.0mm worm

£10.20/$12.75

This set is designed for 'O'-gauge models.

Gearwheel 16.65mm - 3/16" bore : Worm 6.3mm - 2mm bore

Do you require a wheel, worm & mount? If so, see SLGS11.
find out more

21mm/17-spoke driving wheel x 1

21mm/17-spoke driving wheel x 1

£4.80/$6.00

Produced by Scale Link/LSL with an ABS centre and nickled tyre.

Designed for use with Romford axles. Released: JULY 2011

Diameter of drum is 21mm. 5 feet 3 inches in 00 182.7cm in H0

THESE WHEELS ARE SOLD SINGLY
find out more

40:1 Gearset 3/16" WHEEL BORE/2.0mm WORM

40:1 Gearset 3/16

£17.90/$22.38

This set is designed for 'O'-gauge models and includes the MM1240 mount and bushes.

Gearwheel 16.65mm - 3/16" bore : Worm 6.3mm - 2mm bore : Centres 12.25mm.

Markits equivalent MM7-1-1140

Do you just require a wheel & worm? If so, see SLGS11NM or SLGS15.

These are not the same gears as used in SLGS11.


find out more

HO/OO' Code 70 IMON Track & Shinohara Pointwork

Scalelink |  HO/OO' Code 70 IMON Track & Shinohara Pointwork

Page:  1  2  3   >   >>   View All (25) Page:  1  2  3   >   >>   View All (25)

c70 Metal Rail-joiners x 50

c70 Metal Rail-joiners x 50

Ref: SDG341-H0/00

Price: £7.80/$9.75 (Including VAT at 20%)

c70 Metal Rail-joiners x 12

c70 Metal Rail-joiners x 12

Ref: SDG341A-H0/00

Price: £2.40/$3.00 (Including VAT at 20%)

SHINOHARA/IMON c70 Insulated Rail Joiners x 12

SHINOHARA/IMON c70 Insulated Rail Joiners x 12

Ref: SDG342A

Price: £3.60/$4.50 (Including VAT at 20%)

SHINOHARA c70 Insulated Rail Joiners x 10

SHINOHARA c70 Insulated Rail Joiners x 10

Ref: SDG342B

Price: £3.00/$3.75 (Including VAT at 20%)

Code 70 Flexi-track - Nickel-silver

Code 70 Flexi-track - Nickel-silver

Ref: SDG315

NOTE: Track cannot be sent in the UK by Royal Mail. The courier cost for up to 10 metres is £10.00 plus VAT.

Standard postal rates do NOT apply - SELECT FLEXI-TRACK in shipping - If you buy turnouts as well, use FLEXI-TRACK PLUS.

Customers outside the UK can only receive track by International standard parcel

unless the track is cut down to 900mm lengths. SELECT FLEXI-TRACK in shipping

FOR JOINERS SEE `N' SECTION. NOW MADE BY IMON MODELS using Shinohara tooling

NOW MADE BY IMON MODELS using Shinohara tooling.

Sorry - sold out

Price: £7.80/$9.75 (Including VAT at 20%)

Code 70 Flexi-track - Nickel Silver x 10

Code 70 Flexi-track - Nickel Silver x 10

Ref: SDG315B

NOTE: Track cannot be sent in the UK by Royal Mail. The courier cost for up to 10 metres is £10.00 plus VAT.

Standard postal rates do NOT apply - SELECT FLEXI-TRACK in shipping - If you buy turnouts as well, use FLEXI-TRACK PLUS.

Customers outside the UK can only receive track by International standard parcel

unless the track is cut down to 900mm lengths. SELECT FLEXI-TRACK in shipping

FOR code 70 JOINERS SEE `N' SECTION. NOW MADE BY IMON MODELS using Shinohara tooling

NOW MADE BY IMON MODELS using Shinohara tooling.

Just 6 boxes left -12/09/2022

Price: £75.00/$93.75 (Including VAT at 20%)

Code 70 Double-guard Flexi-track

Code 70 Double-guard Flexi-track

Ref: SDG317

NOTE: Track cannot be sent in the UK by Royal Mail. The courier cost for up to 10 metres is £10.00 plus VAT.

Standard postal rates do NOT apply - SELECT FLEXI-TRACK in shipping - If you buy turnouts as well, use FLEXI-TRACK PLUS.

Customers outside the UK can only receive track by International standard parcel

unless the track is cut down to 900mm lengths. SELECT FLEXI-TRACK in shipping

FOR JOINERS SEE `N' SECTION

Only 19 remaining -12/09/2022

Price: £12.00/$15.00 (Including VAT at 20%)

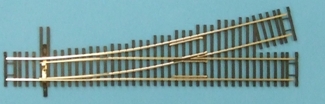

Code 70 No 4 Turnout Left-hand

Code 70 No 4 Turnout Left-hand

Ref: SDG301

NOTE: This turnout is ok for small parcel post - select SHINOHARA TURNOUTS & CROSSING at the checkout.

Standard postal rates do NOT apply - If you purchase track as well select FLEXI-TRACK PLUS.

Customers outside the UK can only receive track by International standard parcel

unless the track is cut down to 900mm lengths. SELECT FLEXI-TRACK in shipping

Radius 40.5cm / 15.94" : Length 18.5cm /7.28" ; Frog 14.15 degrees.

Use SHINOHARA SDG650 Point motor OR any SELF-LATCHING point-motor.

For manual operation see SDG651 in Shinohara accessories

Only 10 remaining -12/09/2022

Price: £19.80/$24.75 (Including VAT at 20%)

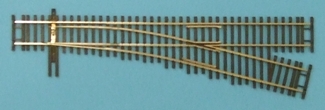

Code 70 No 4 Turnout Right-hand

Code 70 No 4 Turnout Right-hand

Ref: SDG302

NOTE: This turnout is ok for small parcel post - select SHINOHARA TURNOUTS & CROSSING at the checkout.

Standard postal rates do NOT apply - If you purchase track as well select FLEXI-TRACK PLUS.

Customers outside the UK can only receive track by International standard parcel

unless the track is cut down to 900mm lengths. SELECT FLEXI-TRACK in shipping

Radius 40.5cm / 15.94" : Length 18.5cm /7.28" ; Frog 14.15 degrees.

Use SHINOHARA SDG650 Point motor OR any SELF-LATCHING point-motor.

For manual operation see SDG651 in Shinohara accessories

Only 8 remaining -12/09/2022

Price: £19.80/$24.75 (Including VAT at 20%)

Code 70 No 6 Turnout Left-hand

Code 70 No 6 Turnout Left-hand

Ref: SDG303

NOTE: This turnout is ok for small parcel post - select SHINOHARA TURNOUTS & CROSSING at the checkout.

Standard postal rates do NOT apply - If you purchase track as well select FLEXI-TRACK PLUS.

Customers outside the UK can only receive track by International standard parcel

unless the track is cut down to 900mm lengths. SELECT FLEXI-TRACK in shipping

Radius 109cm / 43" : Length 30cm : Frog 9.30 degrees

Use SHINOHARA SDG650 Point motor OR any SELF-LATCHING point-motor.

For manual operation see SDG651 in Shinohara accessories

Sorry -sold out

Price: £21.00/$26.25 (Including VAT at 20%)

Code 70 No 6 Turnout Right-hand

Code 70 No 6 Turnout Right-hand

Ref: SDG304

NOTE: This turnout is ok for small parcel post - select SHINOHARA TURNOUTS & CROSSING at the checkout.

Standard postal rates do NOT apply - If you purchase track as well select FLEXI-TRACK PLUS.

Customers outside the UK can only receive track by International standard parcel

unless the track is cut down to 900mm lengths. SELECT FLEXI-TRACK in shipping

Radius 109cm / 43" : Length 30cm : Frog 9.30 degrees

Use SHINOHARA SDG650 Point motor OR any SELF-LATCHING point-motor.

For manual operation see SDG651 in Shinohara accessories

Sorry - sold out

Price: £21.00/$26.25 (Including VAT at 20%)

Code 70 No 8 Turnout Left-hand

Code 70 No 8 Turnout Left-hand

Ref: SDG305

NOTE: This turnout is ok for small parcel post - select SHINOHARA TURNOUTS & CROSSING at the checkout.

Standard postal rates do NOT apply - If you purchase track as well select FLEXI-TRACK PLUS.

Customers outside the UK can only receive track by International standard parcel

unless the track is cut down to 900mm lengths. SELECT FLEXI-TRACK in shipping

Radius 168cm / 66" : Length 37.5cm / 14.75" : Frog 7.09 degrees

Use SHINOHARA SDG650 Point motor OR any SELF-LATCHING point-motor.

Only 5 remaining -12/09/2022

Price: £21.60/$27.00 (Including VAT at 20%)
